LPA77-466
HEAVY-DUTY FULL-MOTION TV WALL MOUNT
For most 43”-90” LED, LCD Curved ＆ Flat Panel TVs
DESCRIPTION:
Heavy-duty arms provide strong support for larger and heavier TVs up to 120kg,it basically holds all types of TVs
from 43”-90”. TV installation and removal are made easy through a unique quick-release mechanism. Toolless tilting
delivers optimal viewing angles. Integrated cable management creates a clean appearance.
SPECIFICATION:
Brand :
LUMI
Product Category:
Full-motion TV Wall Mount
Rank:
Standard
Material:
Steel
Metal Sheet Thickness:
Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=2mm cold-rolled sheet,Wall
Plate THK=3mm pickling sheet (Bracket Arm THK=0.059″ cold-rolled sheet,VESA Panel T
HK=0.079″ cold-rolled sheet,Wall Plate THK=0.12″ pickling sheet)
Pipe Size:
50x25x1.5mm Square Steel Tube (2″x0.98″x0.059″ Square Steel Tube)
Surface Finish:
Powder Coating
Color:
Fine Texture Black

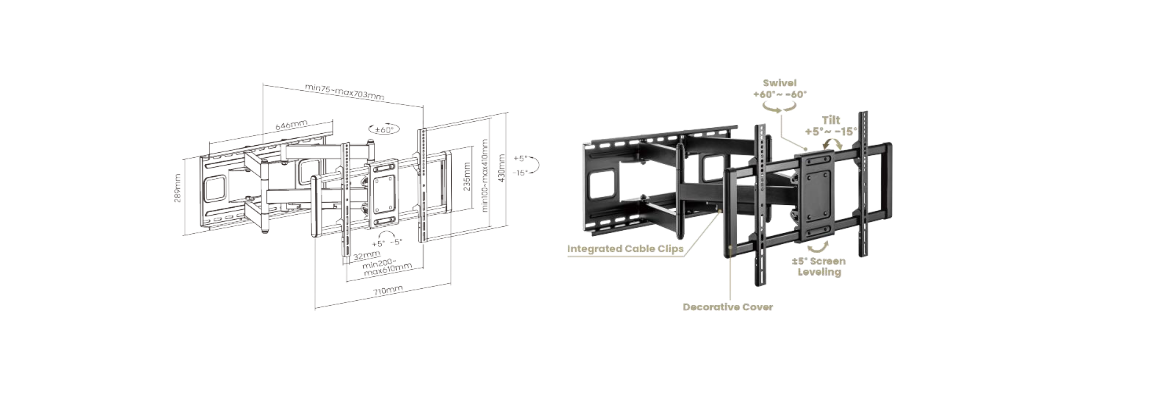

Dimensions:
703x710x430mm (27.7″x28″x16.9″)
Fit Screen Size:
43″-90″
Fit Curved TV:
Yes
Mounting Hole Pattern: VESA Only
VESA Compatible:
200×200,300×200,400×200,300×300,400×300,400×400,600×400
Max. Mounting Hole:
610×410
Weight Capacity:
120kg (264lbs)
Strength Tested:
4 Times Approved
Profile:
75~703mm (3″~27.7″)
Tilt Range:
+5°~-15°
Swivel Range:
+60°~-60°
Screen Level:
+5°~-5°
Screen Freely Tilting: Yes
Installation:
Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type:
Detachable Panel
Wall Plate Type:
Fixed Wall Plate
Direction Indicator:
Yes
Cable Management:
Yes
Bubble Level:
Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package: Compartment Polybag
